19mm Laser Beam Adapters, Clamps, Mounts, Beam Tubes

Telescopic Beam Tube Mount

Telescopic Beam Tube Mount : BTT-19

Telescopic Beam Tubes are typically used when a part of the laser delivery system is attached to a translating axis. The BTT-19 utilizes telescopic male and female tubes to ensure protection from misaligned beams. The male and female tubes are sealed at the slip joint with a PTFE shaft seal. Telescopic Beam Tube Mounts are suitable for vertical or horizontal mounting.

Haas part number BTT-19-CM-CM-350-215 shown above. Download example technical drawings on the right. Part can be made custom to order. Please consult a Haas Laser Technologies Engineer for correct part # prior to order. Download free Adobe PDF reader and SolidWorks Viewer on the left.



BTT-19 Specifications



Telescopic Beam Tube Mount (BTT-19) Part Numbering Anatomy

BTT-19 dash Laser Beam Delivery Component Part # dash Laser Beam Delivery Component Part #
    arrow   arrow

Mounting Style (click links below)

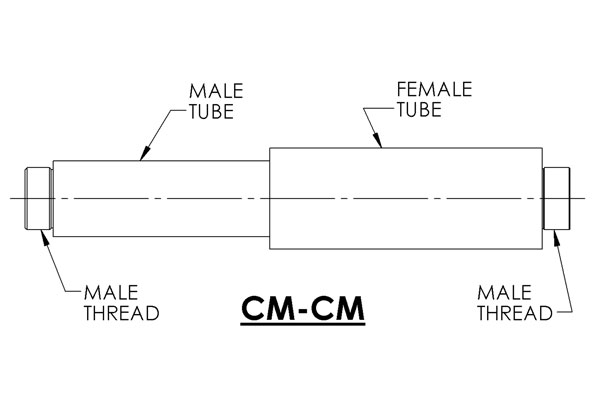

CM-CM : 1"-32 Male X 1"-32 Male

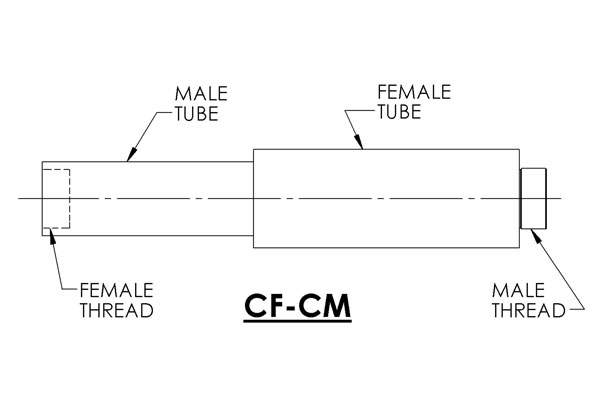

CF-CM : 1"-32 Female X 1"-32 Male

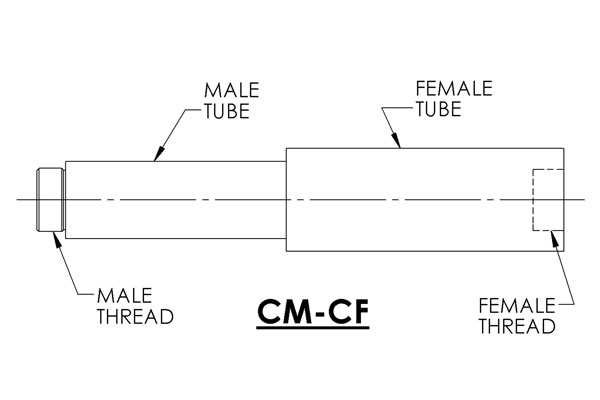

CM-CF : 1"-32 Male X 1"-32 Female
CF-CF : 1"-32 Female X 1"-32 Female

Operational Length
100-065 : 100 MAX / 065 MIN
150-115 : 150 MAX / 115 MIN
200-115 : 200 MAX / 115 MIN
200-165 : 200 MAX / 165 MIN
250-165 : 250 MAX / 165 MIN
250-215 : 250 MAX / 215 MIN
300-165 : 300 MAX / 165 MIN
300-215 : 300 MAX / 215 MIN
300-265 : 300 MAX / 265 MIN
350-215 : 350 MAX / 215 MIN
350-265 : 350 MAX / 265 MIN
350-315 : 350 MAX / 315 MIN
400-215 : 400 MAX / 215 MIN
400-265 : 400 MAX / 265 MIN
400-315 : 400 MAX / 315 MIN
450-265 : 450 MAX / 265 MIN
450-315 : 450 MAX / 315 MIN
500-265 : 500 MAX / 265 MIN
500-315 : 500 MAX / 315 MIN
550-315 : 550 MAX / 315 MIN
600-315 : 600 MAX / 315 MIN




Additional options available upon request

We would be happy to discuss a custom designed solution that's right for any project, large or small. For additional information, contact a Haas Laser Technology sales representative today. (973) 598-1150



** Specifications subject to change without notice. Consult a Haas Laser Tech engineer for the latest specification changes or any additional assistance. **
