25mm Beam Directing & Positioning
Linear Adjustable Rotary Mounts : LMR-25
Linear Adjustable Rotary Mounts are typically attached to a process head for fine adjustment of the laser focus spot relative to the work piece. Each Linear Adjustable Rotary Mount has a clear aperture of 25mm with female 1-1/4”-32 threads on top, and female 1-1/4”-32 threads on the bottom. It easily connects in line with other "25mm Series" components.
A sealed design prevents contaminants from entering the beam path. The laser marked rotary barrel allows for precision linear adjustments.

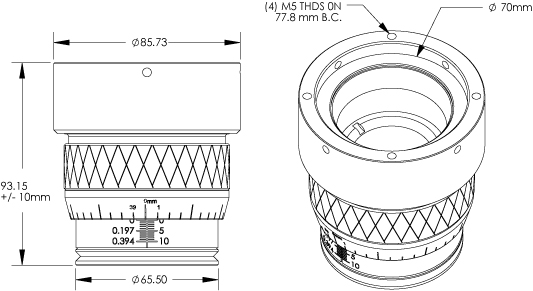

Haas part number LMR-25-25 shown above. Download technical drawings for each stock part number on the right. Download free Adobe PDF reader and SolidWorks Viewer on the left.
LMR-25 Specifications
- .001" (.025mm) Adjustment Accuracy
- Can be used Horizontally
- Sealed Design
- 20mm Clear Aperture
Linear Adjustable Rotary Mount (LMR) Part Numbering Anatomy
| LMR-25 |  |
 |
|||||||||
 |
|||||||||||
|
|||||||||||
