38mm Laser Heads

Laser Process Head : G4-38

The G4 Series Laser Process Head is designed for High-Speed Multi-Kilowatt Cutting Applications. Available with multiple focal length configurations.

Select the part number you need and click the button below to request a quote and more information.

Request Quotation
Laser Beam Delivery

  • G4-38 Laser Head Features

    • X-Y Adjustable Optic Cartridge Design
    • Crash Detection and Protection Options
    • Calibrated Nozzle Tip Stand-off Adjustment
    • Water-Cooled Optics
    • Gas Jet Manifold
    • Multiple Optic Options
    • Modular Design for Custom Configurations
    • All Metric Stainless Steel Hardware
    • Many Pre-Assembled Configurations Available
    • Optic not included



    G4-38 Laser Head Specifications

    • 34.8mm Clear Aperture
    • Uses Standard 1.5" dia. Optics
    • Gas Jet Pressure Rated to 25 Bar (365PSI)
    • Anodized Aluminum, Brass, and Stainless Steel Construction
    • Robust Design

  • Laser Head Assembly

    Overview & Specifications

    G4 Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provision for Ø1.5" x 3.5” EFL optic in Removable cartridge with X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling the optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution and Travel of -4mm +2mm, Capacitive Height Sensing Body, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-089-AMX-CP
    Overview & Specifications

    G4 Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provisions for Ø1.5" x 5.0” EFL and Ø1.5" x 3.5” EFL optics in Removable cartridges with individual X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling each optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution and Travel of -4mm +2mm, Capacitive Height Sensing Body, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-089-127-AMX-CP
    Overview & Specifications

    G4 Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provision for Ø1.5" x 5.0” EFL optic in Removable cartridge with X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling the optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution and Travel of -15mm +5mm, Capacitive Height Sensing Body, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number
    G4-38-127-AMX-CP
    Overview & Specifications

    G4 Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provisions for Ø1.5" x 7.5” EFL and Ø1.5" x 5.0” EFL optics in Removable cartridges with individual X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling each optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution and Travel of -15mm +5mm, Capacitive Height Sensing Body, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-127-191-AMX-CP
    Overview & Specifications

    G4 Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provision for Ø1.5" x 7.5” EFL optic in Removable cartridge with X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling the optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution and Travel of -15mm +5mm, Capacitive Height Sensing Body, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-191-AMX-CP
    Overview & Specifications

    G4 Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provisions for Ø1.5" x 10” EFL and Ø1.5" x 7.5” EFL optics in Removable cartridges with individual X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling each optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution and Travel of -15mm +5mm, Capacitive Height Sensing Body, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-191-254-AMX-CP

    Dieboard Cutting Systems - G4 Laser Head Assemblies

    Overview & Specifications

    G4 Die-Board Laser Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provision for Ø1.5" x 7.5” EFL optic in a Removable Cartridge with X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling the optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release, Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution for Travel of -15mm +5mm, X-Y Nozzle Tip Translation of ±1.5mm, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-191-XYN-CP
    Overview & Specifications

    G4 Die-Board Laser Process Head Assembly, 38mm Series, 34.8mm CA, Provisions for Ø1.5" x 7.5” EFL and Ø1.5" x 5.0” EFL optics in Removable Cartridges with individual X-Y Adjustment, ¼” Tube Compression Fitting for Assist Gas & Water Cooled Spacers with 6mm tube push fittings for cooling each optic.

    Standard configuration includes 3-Axis (XYZ axis) Crash Detection with Micro-Switch Reporting, Magnetic Break-Away with Micro-Switch Reporting, Quick Connect/Release, Calibrated High-Pressure Stainless Steel Nozzle Tip Stand-Off Assembly with 0.025mm Resolution for Travel of -15mm +5mm, X-Y Nozzle Tip Translation of ±1.5mm, T-M8 series Replaceable Copper Nozzle Tip. Stainless Steel and Anodized Aluminum Construction. All Metric Stainless Steel Hardware.

    Request Quotation

    Part Numbers

    Part Number
    G4-38-127-191-XYN-CP

    Specifications subject to change without notice

  • Crash Protection & Detection Devices

    Overview & Specifications

    2-Stage X-Y-Z Crash Detection/Protection Unit (Compact Design). Stage 1 permits Up to +/- 10 deg. of deflection. Three Internal, Series Wired Switches Detect and Report the Crash Condition. Stage 2 incorporates a Magnetic Break-away of the Entire Laser Head to Protect the Unit from Damage.

    Internal Hardened Steel Locating Pads allow the unit to be Precisely relocated back into place. A protective Bellows seals the unit while acting as a tether to support the unit from falling upon a crash break-away condition.

    Request Quotation

    Part Numbers

    Part Number

    G4-38-XYZ-S
    Overview & Specifications
    Disposable Break-Away Crash Protection. The unit is designed to allow the break-away of the laser process head from a crash condition.
    Request Quotation

    Part Numbers

    Part Number
    G4-38-XYZ-BA

    Laser Process Head Assembly

    Overview & Specifications
    Optic Cartridge for 1.5" diameter optic. Includes reusable Indium "C" Seal and Optic Retainer Lock Ring. Upper and Lower Seals permit X-Y Cartridge Adjustment while sealing the beam path from contamination. Hardened Steel inserts provide precise relocation of cartridge. A Stainless Steel Thumbscrew locks the cartridge in place.
    Request Quotation

    Part Numbers

    Part NumberFocal Length
    G4-38-CART-2.5
    2.5in
    G4-38-CART-3.5
    3.5in
    G4-38-CART-5.0
    5.0in
    G4-38-CART-7.5
    7.5in
    G4-38-CART-10
    10in

    Laser Nozzle Tip Stand-Off Adjusters

    Overview & Specifications
    Nozzle Tip Stand-off Adjuster. Rated at 25 Bar (365PSI). Laser-Marked Calibrated Rotary Barrel Adjustment. Adjustable zero-point setting. Robust Stainless Steel, Brass, and Anodized Aluminum Design.
    Request Quotation

    Part Numbers

    Part Number
    TSA-3820QS-654
    -15mm, +5mm Travel (Minimum Focal Length 3.5in)
    TSA-3806QS-400
    -4mm, +2mm Travel (Minimum Focal Length 3.5in)
    Overview & Specifications
    Locking Ring to secure TSA-3820QS series tip standoff adjuster to G4-38 laser head.
    Request Quotation

    Part Numbers

    Part Number
    G4-38-QS20-LR
    Overview & Specifications
    Locking Ring to secure TSA-3806QS series tip standoff adjuster to G4-38 laser head.
    Request Quotation

    Part Numbers

    Part Number
    G4-38-QS06-LR

    Q-Series Wrench

    Overview & Specifications
    Wrench, Lock Ring for 38mm TSA-QS Series.
    Request Quotation

    Part Numbers

    Part Number
    TSA-38-QRW

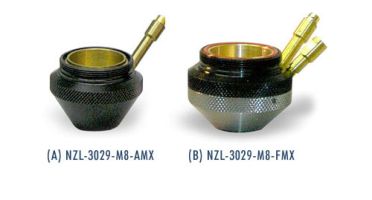

    Laser Nozzle Tip Holders

    Overview & Specifications
    Capacitive Height Sensing Nozzle Bodies are developed for high-pressure assist gas applications with low heat transfer between the tip and nozzle.
    Request Quotation

    Part Numbers

    Part Number
    View all Nozzle Bodies
    Only compatiable with 3029 series

    Laser Nozzle Tips

    Overview & Specifications
    Our standard offering of M8 series Nozzle tips offered in different orifice sizes and styles
    Request Quotation

    Part Numbers

    Part Number
    View all Nozzle Tips
    Only compatiable with M8 & 5/8in Series Nozzle Tips

    Cartridge Crosshair Target

    Overview & Specifications
    Cross Hair Target Cartridge used for aligning the laser beam through the process head. Brass and Aluminum construction.
    Request Quotation

    Part Numbers

    Part Number
    G4-38-TGT

    Sealing Cartridge

    Overview & Specifications
    Sealing Cartridge (No Optic)
    Request Quotation

    Part Numbers

    Part Number
    G4-38-CART-SC

    Cover Glass Cartridge

    Overview & Specifications
    Optic Cartridge Assembly for Cover Glass.
    Request Quotation

    Part Numbers

    Part Number
    G4-38-CART-CG

    Fittings

    Overview & Specifications
    Gas assist and cooling fittings for different tube diameters and configurations
    Request Quotation

    Part Numbers

    Part Number
    FIT-CM-25-BSP-PR
    Assist Gas, 1/4 Tube, 1/8in BSPP, High Pressure
    FIT-PU-1/8B-6MM-K163
    Cooling, Push Lock, 6mm Tube to 1/8in ISO

    Optic Cartridge Seal Kit

    Overview & Specifications
    Optic Cartridge Seal Kit (Top & Bottom Seals)
    Request Quotation

    Part Numbers

    Part Number
    G4-38-CART-SK

    Thumb Screw

    Overview & Specifications
    Thumb Screw, M5, for G4 Cartridge
    Request Quotation

    Part Numbers

    Part Number
    G4-38-TS-5M

    Locking Rings

    Overview & Specifications

    Optical Edge Thickness has a minimum of 6mm and maximum of 8mm.

    Request Quotation

    Part Numbers

    Part Number
    LRO-1625-32-35-38-60-S
    Ø1.625"-32 x .235" with step, SS, G4
    Overview & Specifications

    Optical Edge Thickness has a minimum of 3mm and maximum of 5mm.

    Request Quotation

    Part Numbers

    Part Number
    LRO-1625-32-35-XX-32-S
    Ø1.625in-32 x .125in, SS

    Optic Wrench

    Overview & Specifications

    The Optic Wrench has an anodized aluminum construction and is specifically designed for tightening and loosening the Optic Locking Ring. Fits Ø1.37” ID Locking Rings.

    Request Quotation

    Part Numbers

    Part Number

    OW-150-137

    Specifications subject to change without notice

  • File NameFile
    g4-38-127-191-xyn-cp
    		Download
    g4-38-191-254-amx-cp
    		Download
    g4-38-191-xyn-cp
    		Download
    g4-38-127-191-amx-cp
    		Download
    g4-38-191-amx-cp
    		Download
    g4-38-089-127-amx-cp
    		Download
    g4-38-089-amx-cp
    		Download
    g4-38-127-amx-cp
    		Download
