25mm/30mm Series

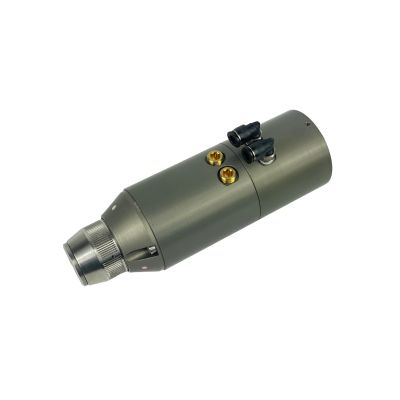

PHF-25
Fiber laser process head provides a protective housing for the focus lens. Each process head is equipped with a nozzle tip standoff adjustment and X-Y focus lens adjustment and removable cover glass assembly. Internal gas jet manifold is included for introducing assist gas to the workpiece. Several fiber input options available.
Laser Beam Delivery
-
- Standard Focal Lengths: 50mm, 60mm, 80mm, 100mm, 150mm (Optic Not Included)
- Several fiber connections available
- Removable cover glass/nozzle assembly. Provision for 25mm dia cover glass (Optic not included)
- 5mm max. cover glass thickness
- Assist Gas Pressure: 10.3 Bar (150psi) Max.
- Assist Gas Fitting: 1/8" I.D. Hose Barb
- Intra-Optic Gas Purge Fitting: 1/8" I.D. Hose Barb
- Optics: uses Haas High Power Air Spaced Lenses (Custom Optics Available)
- Use with T-438 or T-512 Series Tips
- Available for all 1064-1070nm Wavelengths (Other wavelengths available)
- Anodized Aluminum & Stainless Steel Construction
- 22.8mm Clear Aperture
-
-
-

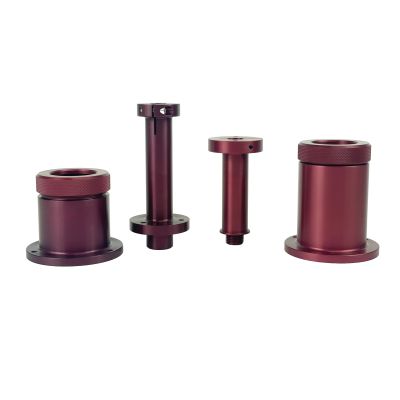

Fiber Collimator Mounts
Fiber collimator mounts for use with fiber lasers and process heads.
25mm Collimator
25mm series collimator for fiber lasers. Can be used with a variety of fiber connectors.
