BBK-75 Kinematic Beam Benders

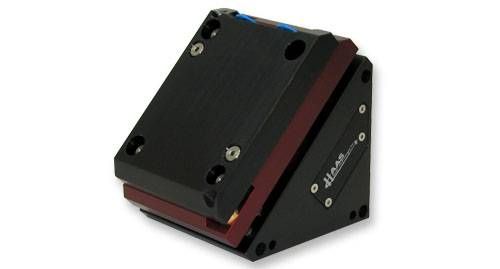

The BBK-75 series kinematic laser beam benders provide a 45º or 90º beam displacement with a 75mm clear aperture.

Independent Orthogonal mirror correction with 80 pitch adjustment screws provides precise, repeatable alignment. Optic removal and replacement can be accomplished without affecting alignment. Several thicknesses can be accommodated. All captive hardware.

BBK-75 Specifications

• ±2º Independent Orthogonal Mirror Adjustment
• 80 Pitch Adjustment Screws
• Accommodates 100mm & 101mm (4.0") Diameter Mirrors (other diameters available)
• Face & Side Mounting Holes
• Available for All Wavelengths
• Sealed Design
• Anodized Aluminum Construction
• 75mm Clear Aperture
• Water Cooling & Interlock Options
• Internally Cooled Copper Mirror Option

Available Options

• Angle: 45 degrees or 90 degrees
• Optic Diameter: 100mm or 4in
  • 100mm diameter features internally cooled copper mirror
• Optic Edge Thickness: 9.5mm, 10mm 19mm or 25mm
  • 25mm features internally cooled copper mirror
• Cooling: Water or Metal (internally cooled mirror)
• Interlock: None or interlock
